LogiQuip Wire Shelving
LQS Wire Shelving
LogiQuip’s Standard (LQS) line of Wire Shelving is anything but standard. In addition to saving space, our LQS Wire Shelving and Posts begin with a carbon steel core that is double chrome plated for strength and durability that lasts. With a wide variety of configurations available to meet any of your organizational needs, our LQS Wire Shelving Line is flexible enough to be used virtually anywhere within your facility for easy and efficient storage.
Mobile
Wire Shelving Models
Stationary
Wire Shelving Models
Shelving
Components
Features & Benefits
Carbon Steel Core & Double Chrome Plating
Each Carbon Steel Shelf and Post is Double Chrome Plated. In addition to the smooth, bright finish that minimizes damage to stored items, Double Chrome Plating also helps to eliminate discoloration and peeling.
Two-Truss Shelf Design
LogiQuip’s Two-Truss Shelf Design reinforces our 48’’, 54’’, 60’’ and 72’’ shelves to provide added strength and support
1-Inch Round Posts
1” Round Posts provide stability to the shelving unit Compatible with all of our LQS Shelving, each Post is notched and numbered at 1” intervals for easy leveling of each shelf
Wire Shelving Options
Standard Kits Include
Four (4) Double Chrome Plated Posts
Four (4) Casters
Two (2) Swivel/Brake and Two (2) Swivel
4 Four (4) Donut Bumpers
Available with 4, 5, 6 and 7 shelves
Maximum Weight 750 lbs
Complete Kits Include
One (1) Dust Cover
One (1) Full Width Label Holder Per Shelf
Four (4) Double Chrome Plated Posts
Four (4) Casters
Two (2) Swivel/Brake and Two (2) Swivel
4 Four (4) Donut Bumpers
Available with 4, 5, 6 and 7 shelves
Maximum Weight 750 lbs

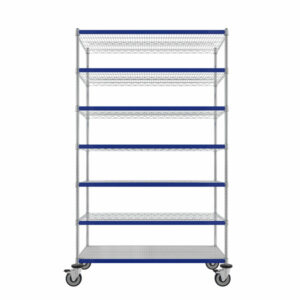

Mobile Wire Shelving
LogiQuip’s LQS Mobile Wire Shelving are built to be moved Our Double Chrome Plated Carbon Steel Core Shelves and Posts combine with heavy-duty casters make each shelving unit ideal for storing items in one place or moving from location to location Select a preexisting kit or build your own from the ground up with a wide variety of components.
Mobile Kits
Mobile Carts
Stationary Wire Shelving
Available as a kit or custom build your own, our LQS Stationary Wire Shelving can be used virtually anywhere in your facility for an easy, efficient storage option.
The Standard Stationary Wire Shelving Kit contains shelves with four (4) posts.
Maximum weight load is 800 pounds for shelves up to 48” wide, and 600 pounds for shelves over 48” wide, but the total weight of the kit cannot exceed 750 pounds.
Shelf Cover for the bottom shelf
Shelving Components
Sloped Suture Shelves
These 10” high chrome Shelves are Sloped, making them ideal to store sutures. Single-sided Slope Suture Shelves are 18”deep, double-sided Slopes Suture Shelves are 24”deep.
Wall Mounting Shelves
LogiQuip Wall Mounting Shelves includes two (2) 14” deep shelves, two (2) posts, four (4) brackets and four (4) cantilever arms. Wall mounting bolts not included. User must determine capability of wall to support load and anchoring requirements.

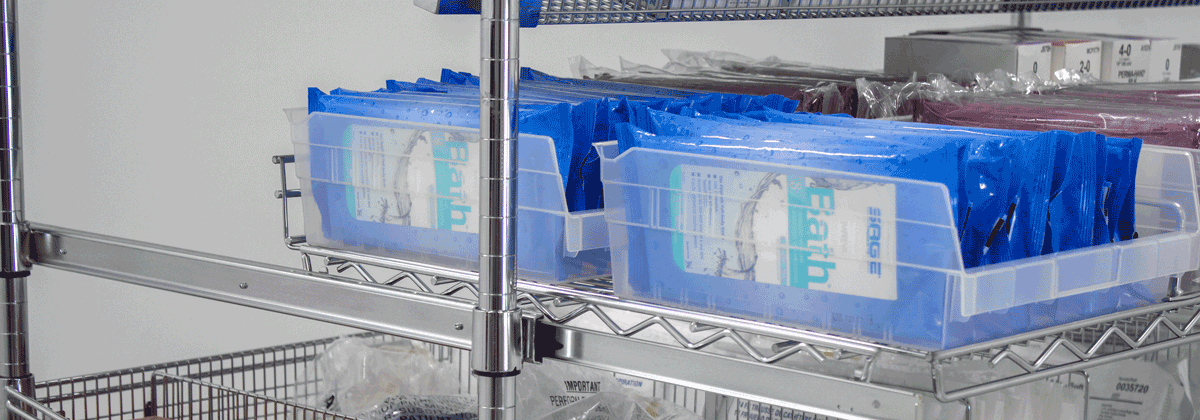

Wire Shelves
LogiQuip® Wire Shelves are adjustable on 1” increments and come in a variety of sizes to suit every application.Each shelf comes with four (4) split sleeves to attach the shelf to the pole.
Solid Shelves
Solid Shelves are available in 24” deep in both Stainless Steel and Galvanized Steel.
Waterfall Edge Shelf
LogiQuip’s Waterfall Edge Shelf design allows fragile items, like sterile packaging, to slide easily off the edge without the worry of snagging or tearing.
5- Sided Corner Shelves
5-Sided Corner Shelves attach to standard posts and create extra storage when two shelving units are put together at a 90 degree angle.
3- and 4-Sided Frames
Nickel-chrome plated 3- and 4-Sided Frames attach directly to standard posts to increase stability and support.
Posts
Posts are one-inch 16 Gauge round tubing. All Posts are numbered and adjustable on one-inch increments. Posts can be ordered without leveling feet for stem caster applications. Includes one cap per Post. Special Post lengths are available for a nominal cutting charge.
Wire Baskets
Shown: 18-inch deep Wire Basket
Choose from 18-inch or 24-inch deep Wire Baskets that attached directly to the posts. Dividers and Rods are available in two sizes to maximize storage and organization.
Cantilever Bracket
The Cantilever Bracket is used to mountshelves to the post of Wall Mounting Shelves and available in three sizes.
Dolly Bases
Shown: Stainless Steel Solid and Open Inserts
LogiQuip Dolly Bases are heavy-duty all-welded and fabricated with an integral C-channel welded to a steel plate frame. The wrap-around bumper is non-marking. Dolly Bases are available in three (3) styles: Open, Premium Epoxy-Coated Solid Insert or Stainless Steel Solid Insert. Inserts adhere to infection control standards and function as solid bottom shelves which eliminates the additional wire shelf requirement. Other standard sizes are available on request in depths of 18” and 21” and widths of 42” and 54”.
Plate/Stem Casters & Donut Bumpers
LogiQuip Casters come in two options – Plate and Stem. Plate Casters are for use with Dolly Bases. 5-inch Stem Casters are designed to be used with posts, and are non-marking. Donut Bumpers are for use with Stem Casters and also non-marking polyurethane.
Shelf Covers
Shelf Covers come in two (2) options – Snap-On or Flat. All Shelf Covers are made from white poly material and adhere to standards without the extra cost. Epoxy-coated and stainless steel Shelf Covers are also available.
Split Sleeves
Split Sleeves snap around grooves of the post to hold a shelf. Four (4) Split Sleeves are included with each shelf.
See All Available Products for This Category
View Products Gallery
Learn More

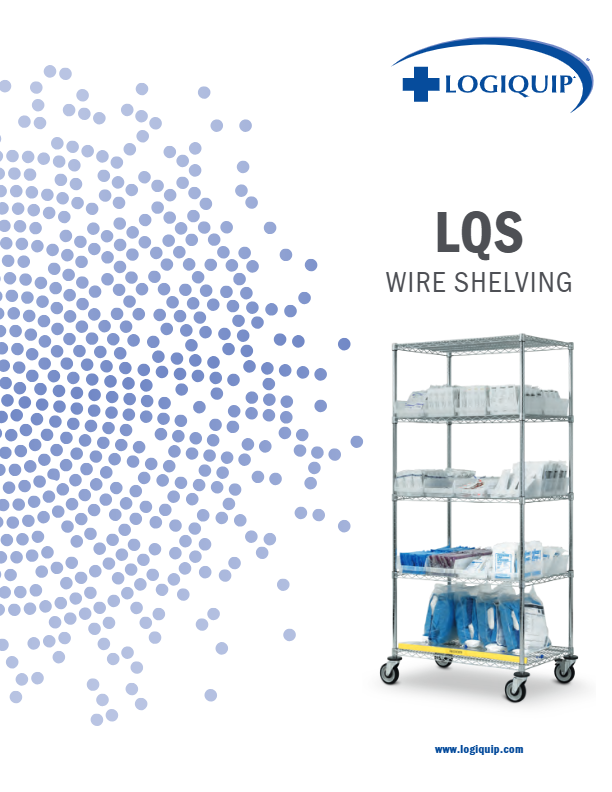

We want you to have the information you need at your fingertips. Please feel free to download the latest information on this product.
